Gutter sizing and capacity start from the roof area a system can drain before it overflows, calculated from the flat footprint beneath the roof rather than the length of gutter on the wall. Industry drainage tables rate a 5-inch profile at roughly 5,520 square feet and a 6-inch at roughly 7,960 square feet, both on a one-inch-per-hour basis that divides down as rain intensifies. In New Orleans, outlet count and size decide the outcome as often as the trough does.
At TurnKey Gutters, we size systems from the roof down rather than from the run of gutter on the wall, because capacity is a drainage-area calculation and not a matter of how much gutter a house needs. It is the single most common thing an existing system gets wrong here.
The industry works from published drainage tables, not rules of thumb. Those tables give a defensible number for what each profile can carry, and they are the reason a correctly installed 5-inch system can still overflow on a big roof.
Understanding the arithmetic makes every quote you receive easier to read. Contact us today to have your roofline measured and its capacity calculated.
Capacity is the roof area a component can drain before water backs up over the front edge. It is published per profile and per outlet size, which makes it something you can check rather than guess at.
| Component | Roof Area It Can Drain | Typical Pairing |
|---|---|---|
| 5-inch K-style trough | Roughly 5,520 square feet | The common residential default |
| 6-inch K-style trough | Roughly 7,960 square feet | Large, steep, or multi-plane roofs |
| 2-by-3-inch downspout | Roughly 600 square feet | Paired with 5-inch troughs |
| 3-by-4-inch downspout | Roughly 1,200 square feet | Paired with 6-inch troughs and heavy-rain regions |
The trough figures come from published industry sizing tables on a one-inch-per-hour basis, so the usable area divides down as rainfall intensity climbs rather than describing local rainfall. Read the trough rows and the downspout rows together and the real bottleneck appears: a 6-inch trough rated near 7,960 square feet cannot deliver its rated capacity through a single 2-by-3 outlet.
The calculation starts at the roof plane and works down. Three inputs produce the number, and none of them is gutter length.
Sizing starts with the horizontally projected footprint beneath each roof plane, not the sloped surface area. Rain falls vertically, so a steeper plane covering the same footprint intercepts the same rainfall as a shallow one.
In practice that means taking the length and width of each plane’s footprint, multiplying them, and assigning the result to the gutter run that serves it. A hip roof with four planes produces four footprints rather than one.
The arithmetic surprises people, because a steep roof plainly has more surface. That extra surface collects no extra rain, which is why every published method measures the shadow a roof casts and not the roof itself. Our custom gutter systems are specified from those measured drainage areas.

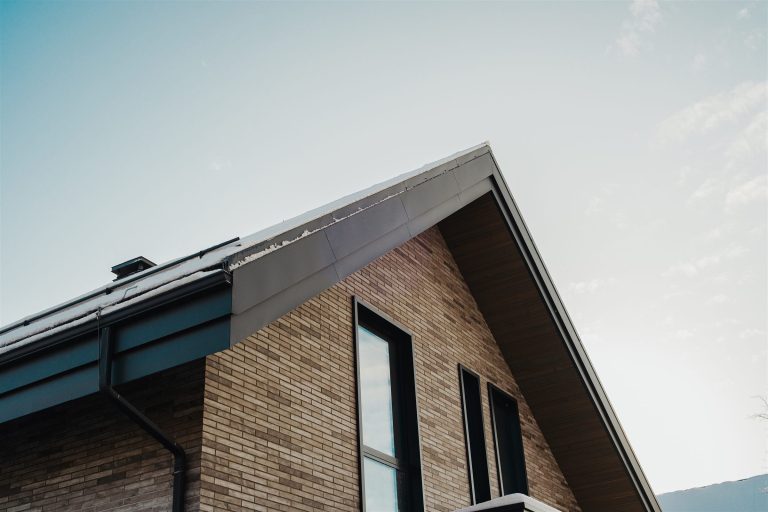

Pitch does matter, just not through surface area. It enters the calculation as a separate factor for wind-driven rain, because a steep plane presents itself to rain arriving at an angle in a way a flat one does not.
Published pitch factors run at roughly 1.00 up to a 3-in-12 slope and climb toward about 1.30 at 12-in-12. The numbers are approximate by design, so a contractor applies them as an adjustment, not a precise coefficient. Over the same footprint, a 12-in-12 plane therefore needs measurably more capacity than a 3-in-12 plane does.
A house does not get one capacity figure; it gets one per run. The valley that dumps two planes onto a 12-foot stretch of gutter is a different problem from the 40-foot run serving one shallow plane.
Valleys concentrate the load, because two planes drain into one short length of trough and the drainage area feeding that length is the sum of both. The same profile that handles a long, single-plane run comfortably can be overwhelmed there.
This is why a whole-house average hides the failure. Sizing each run to the drainage area actually feeding it is what stops the same two spots overflowing every year while the rest of the system sits half empty.
Capacity tables are built around a rainfall rate, and short bursts here can exceed the rate a system was specified for. A gutter sized for ordinary rainfall is not defective when it overflows in a downpour; it is simply operating past its published limit.
Duration matters as much as total volume. An inch spread across an afternoon moves through a 5-inch system without trouble. The same inch arriving in 15 minutes reaches the trough faster than the outlets can clear it, and water backs up from the low point outward.
Clearing and tightening buy nothing in that case, because neither changes the drainage-area figure. When the arithmetic says the system cannot carry the roof above it, gutter replacement sized to the measured drainage area is the only fix that holds.

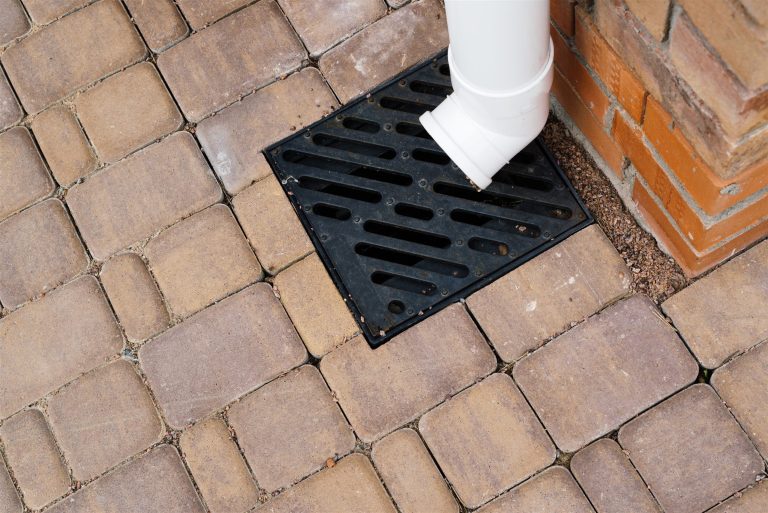

Size the outlets first and the trough second, because the opening is almost always the limiting component. Then check the outlet count on each run against the roof planes feeding it.
A 3-by-4-inch downspout has roughly double the cross-section of a 2-by-3-inch, which is the single largest capacity gain available on most homes. Upsizing outlets on an existing 5-inch system often solves an overflow problem that a bigger trough alone would not.
Cross-section is the limiting dimension at the opening, and the published tables reflect that by crediting the 3-by-4 with roughly double the drainage area of the 2-by-3. That is why an outlet change often delivers more usable capacity than moving from a 5-inch trough to a 6-inch, which adds roughly 40 percent.
The outlet also fails more gracefully when upsized. A larger pipe passes debris that would plug a smaller one, so the capacity gain holds through the season instead of eroding as the gutters load up.
Industry guidance places one downspout per roughly 20 to 40 linear feet of gutter, or one per roughly 600 to 800 square feet of drainage area, and heavy-rain regions sit at the tighter end of both. Splitting a long run between two outlets halves the distance water travels inside the trough.
That distance is the part homeowners overlook. Water entering a trough 30 feet from the nearest outlet has to travel all 30 feet before it can leave, and the low point fills first regardless of how large the trough is.
A 6-inch trough carries roughly 40 percent more water than a 5-inch. It is the right answer when the measured drainage area exceeds what a 5-inch can hold with the outlets you can reasonably fit. It also takes heavier hangers, which is part of the quote rather than an upsell.
Skipping straight to the 6-inch profile without checking outlet count is the common mistake. A correctly specified gutter installation pairs the larger trough with 3-by-4 outlets, because the trough cannot deliver its rating through an undersized opening.
Start with the arithmetic rather than the symptom, because a measured drainage area tells you whether your system was ever sized for the roof above it. Once you have that number, every quote and every overflow stops being mysterious.
At TurnKey Gutters, we measure each roof plane, calculate the drainage area per run, and specify the trough and outlets against it. Call us today to book a capacity assessment for your home.
A 6-inch trough paired with 3-by-4-inch downspouts is the safer specification in a heavy-rain region. The 6-inch profile drains roughly 7,960 square feet of roof area against the 5-inch profile’s 5,520 on a one-inch-per-hour basis, and the larger outlet has roughly double the cross-section so it does not become the bottleneck.
Measure the horizontally projected footprint beneath each roof plane, apply a pitch factor for wind-driven rain, then match the total against published drainage-area figures per profile. Each gutter run is sized separately against the planes feeding it, rather than the house being given one overall figure.
They are worth it when the measured drainage area exceeds what a 5-inch system can carry with the outlets you can fit. A 6-inch trough carries roughly 40 percent more water, but the gain only materializes if it is paired with 3-by-4-inch downspouts rather than the smaller size.
Industry drainage tables put a 5-inch K-style gutter at roughly 5,520 square feet of roof area on a one-inch-per-hour basis, so the usable figure divides down as rainfall intensity rises. That figure also assumes adequate outlets, so a 5-inch run served by one undersized downspout will back up well before reaching it.
Yes, but not by adding surface area. Sizing works from the flat footprint beneath the roof because rain falls vertically, and pitch enters separately as a multiplier for wind-driven rain, running from roughly 1.00 on a shallow slope toward about 1.30 on a very steep one.
Follow the same guidance as any profile: one downspout per roughly 20 to 40 linear feet of gutter, or one per roughly 600 to 800 square feet of drainage area, with heavy-rain regions at the tighter end. A 6-inch trough needs 3-by-4 outlets to deliver its rated capacity.
Oversizing rarely causes a performance problem, though it costs more in material and heavier hangers and can look out of proportion on a small roofline. The more common error runs the other way, with a trough sized correctly but starved by outlets that are too few or too small.
Clean gutters that still overflow almost always point to capacity rather than blockage. Either the trough is undersized for the drainage area feeding it, or the outlets cannot pass water fast enough, and short high-intensity bursts expose both faster than steady rain does.
